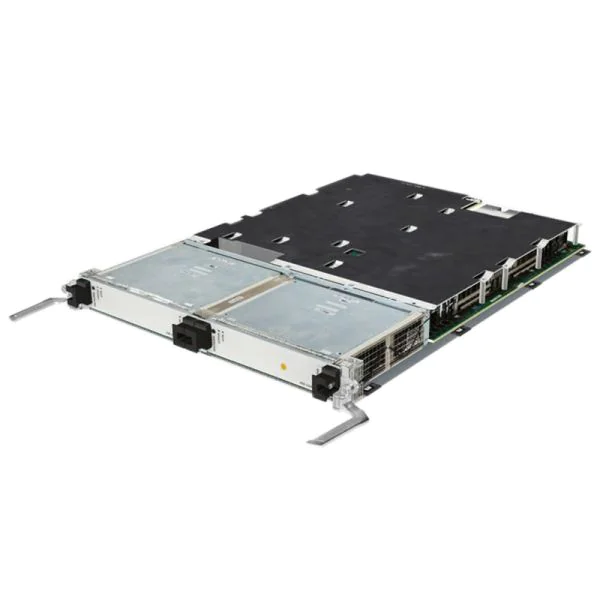

Cisco A9K-ISM-100 Overview

A9K-ISM-100 is Cisco ASR 9000 Series Integrated Service Module (ISM). Cisco® ASR 9000 Series Integrated Service Module (ISM) is a universal service foundation for Cisco ASR 9000 Aggregation Services Routers. The module provides a highly scalable modular services delivery platform for delivering multiple types of services. Currently the Integrated Services Module supports the following services:

· Carrier Grade Network Address Translation (NAT): CGN
· Dual-Stack Lite
· Stateful NAT64
· Mapping of Address and Port Translation (MAP-T)

The service hosted on an ISM may be changed at any time by changing the service image loaded on the ISM. Multiple services can coexist on multiple ISMs in the same Cisco ASR 9000 system.

Be the first to review “A9K-ISM-100, Cisco ASR 9000 Module, 40G throughput/AVSM ISM/Hot-swappable”

Reviews

There are no reviews yet.

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

A9K-ISM-100 Specifications
Type	Cisco ASR 9000 Module AVSM ISM 40G
Redundancy	· No single point of failure · Fabric redundancy · Power supply redundancy · ISM redundancy (through CDSM)
Physical specifications	Cisco ASR 9000 Series ISM (A9K-ISM-100) occupies one slot; can be inserted in any slot within the chassis: · Height: 1.65 in. (4.19 cm.) · Width: 15.86 in. (40.28 cm.) · Depth: 23.91 in. (60.73 cm.) · Weight: 18.35 lb
Power input	· Worldwide ranging AC: 200–240V; 50–60 Hz; 16A nominal · Worldwide ranging DC: –48V to –60V; –54V; 50A nominal
Environmental conditions	· Operating temperature: 32 to 104°F (0 to 40°C) · Storage temperature: –40 to 167°F (–40 to 75°C) · Relative humidity: 10 to 90%, noncondensing · Regulatory compliance
Power consumption	· Typical: 330W · Maximum: 450W
Environmental Specifications
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (–5 to 55ºC) Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that one-year period).
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90% Note: Not to exceed 0.024 kg water or dry air
Storage temperature	–40 to 158ºF (–40 to 70ºC)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg water or dry air.
Operating altitude	–60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
