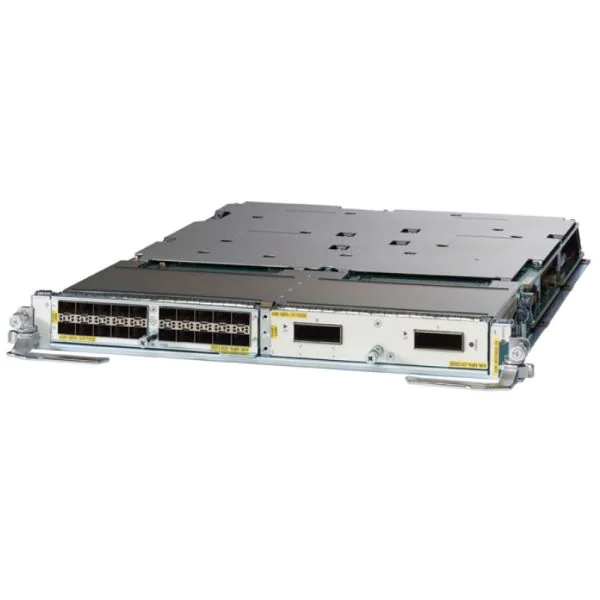

Cisco A9K-MOD400-TR Overview

Cisco’s A9K-MOD400-TR, a 400G Modular Linecard, is optimized for packet transport, catering to high-performance networking needs. This linecard effectively combines advanced features, exceptional throughput, and superior reliability, making it ideal for telecom operators and data centers looking to enhance network efficiency and capacity.

A9K-MOD400-TR Product Highlights

● 400G capacity

● Modular design

● Packet transport optimization

● High reliability

● Enhanced network efficiency

Product Features Comparison

Model	Throughput	Form Factor	Packet Optimization	Port Density	Flexibility	Warranty
A9K-MOD400-TR	400 Gbps	Modular	Yes	High	High	5 Years
A9K-MOD200-SE	200 Gbps	Modular	No	Medium	High	5 Years
C9400-LC-24XS	240 Gbps	Fixed	No	High	Medium	5 Years
N9K-X9736PQ	360 Gbps	Fixed	No	Medium	Medium	3 Years
ASR1002-HX	100 Gbps	Fixed	Yes	Low	High	5 Years
ISR4451-X	10 Gbps	Fixed	No	Low	Medium	5 Years
WS-X6548-GE-TX	40 Gbps	Modular	Yes	Medium	Medium	3 Years

A9K-MOD400-TR Product Application Scenarios

● High-speed internet backbone

● Data center interconnects

● ISP core network enhancements

Be the first to review “A9K-MOD400-TR, Cisco ASR 9000 Linecard, 400G throughput, modular design, packet transport”

Reviews

There are no reviews yet.

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

A9K-MOD400-TR Specifications
Chassis compatibility	Compatible with the Cisco ASR 9922, 9912, 9910, 9906, 9904, 9010, and 9006 routers
Port density	In the 400G modular line card, up to 2 modular port adapters are supported per line card for up to: ● 40-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 4-port 100G interfaces In the 200G modular line card, two modular port adapters are supported per line card, except for the 2-port 100 Gigabit modular port adapter and the 20-port 10 Gigabit modular port adapter. The 2-port 100 Gigabit and 20-port 10 Gigabit modular adapters are supported only in bay 0 of the 200G modular line card. The achievable port density on this line card is as follows: ● 20-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 2-port 100G interfaces
Ethernet	● IEEE 802.3 compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops, oversubscription drops, Cyclic Redundancy Check (CRC) error drops, packet sizes, and unicast, multicast, and broadcast packets
Card density	Maximum number of line cards per system: ● Cisco ASR 9922: 20 ● Cisco ASR 9912: 10 ● Cisco ASR 9910: 8 ● Cisco ASR 9906: 4 ● Cisco ASR 9904: 2 ● Cisco ASR 9010: 8 ● Cisco ASR 9006: 4
Options	Each line card is available as either a service edge - optimized line card (enhanced QoS) or a packet transport - optimized line card (basic QoS)
Reliability and availability	Line card Online Insertion and Removal (OIR) support without system impact
Network Equipment Building Standards (NEBS)	Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal)	41 to 104°F (5 to 40°C)
Operating temperature (short-term)	23 to 131°F (-5 to 55°C)
Operating humidity (nominal) relative humidity	10 to 85%
Storage temperature	-40 to 158°F (-40 to 70°C)
Storage relative humidity	5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards	Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
