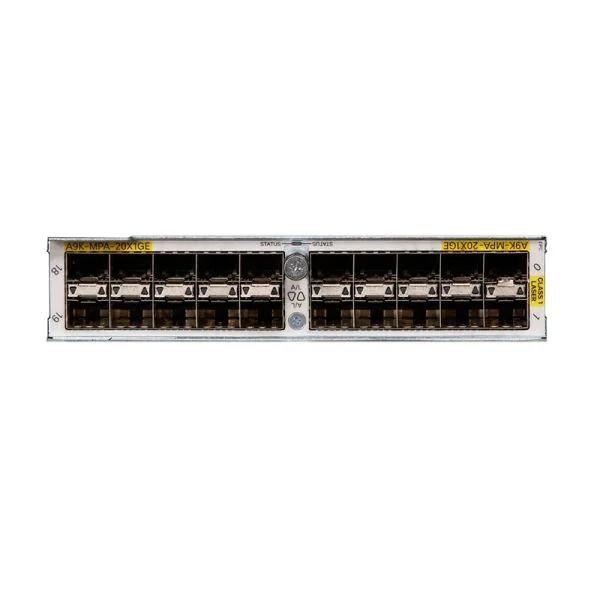

A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design
Roll over image to zoom in
Click to open expanded view

A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design

Call for Price

Call For Price

Availability: In stock

Get A Quote
Category:

Warranty : Warranty Icon

Shipping : Shipping Icon Fast & Secure

Payments : Payment Methods

Certification : Certifications

Cisco A9K-MPA-20X1GE Overview



A9K-MPA-20X1GE is Cisco ASR 9000 Series Router 20-port 1GE Modular Port Adapter. Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities

Quick Specs

Table 1 shows the quick specs.

Product Number A9K-MPA-20X1GE
Type Cisco ASR 9000 20-port 1GE Modular Port Adapter
Physical Dimensions 6.37 W x 1.36 H x 6.70 L

6.37 W x 1.36 H x 8.30 L (including Jackscrew)
Weight 34 oz. (0.96 Kg)
Chassis compatibility Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems
Port density Up to 2 modular port adapters are supported per line card.
Be the first to review “A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.

Customer Reviews

(0)
5 stars
4 stars
3 stars
2 stars
1 stars

No reviews yet.

×

Write a Review

☆ ☆ ☆ ☆ ☆

A9K-MPA-20X1GE Specifications
Type Cisco ASR 9000 20-port 1GE Modular Port Adapter
Physical Dimensions 6.37 W x 1.36 H x 6.70 L 6.37 W x 1.36 H x 8.30 L (including Jackscrew)
Weight 34 oz. (0.96 Kg)
Chassis compatibility Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems
Port density Up to 2 modular port adapters are supported per line card.
Ethernet · IEEE 802.3 compliant · 10 Gigabit Ethernet PHY monitoring · IEEE 802.x flow control · Full-duplex operation · Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Card density Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4
Options Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card.
Reliability and availability Line card online insertion and removal (OIR) support without system impact
Network Equipment Building Standards (NEBS) Cisco ASR 9000 Series Routers are designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal) 41 to 104ºF (5 to 40ºC)
Operating temperature (short-term) 23 to 131ºF (–5 to 55ºC)
Operating humidity (nominal) relative humidity 10 to 85%
Storage temperature –40 to 158ºF (–40 to 70ºC)
Storage relative humidity 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
