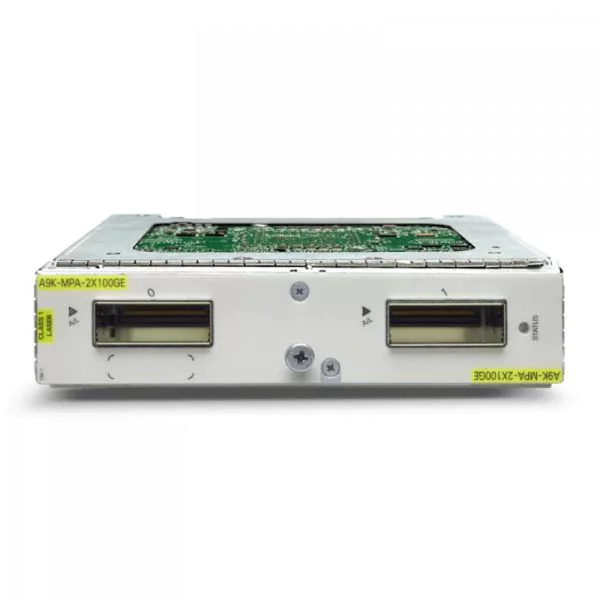

Cisco A9K-MPA-2X100GE Overview

Cisco’s A9K-MPA-2X100GE is a modular port adapter designed for ASR 9000 series routers. This cutting-edge adapter delivers high-performance, reliable 100 GE connections. It is ideal for service providers and large enterprises needing robust networking solutions to handle high-bandwidth applications and services efficiently.

A9K-MPA-2X100GE Product Highlights

● 2-port 100GE adapter
● High performance
● Enhanced flexibility
● Reliable connectivity
● Ideal for ASR 9000 series

Product Features Comparison

Model	Ports	Speed	Form Factor	Compatibility	Key Feature
Cisco A9K-MPA-2X100GE	2	100GE	Modular	ASR 9000	High performance
Cisco A9K-MPA-1X100GE	1	100GE	Modular	ASR 9000	Efficient bandwidth use
Cisco C9400-LC-1TW	1	1T	Line Card	Catalyst 9400	Flexible deployment
Cisco N7K-M108X2-12L	8	10GE	Line Card	Nexus 7000	Scalable architecture
Cisco ASR-920-4SZ-A	4	1GE	Standalone	ASR 920	Compact size
Cisco ISR4331/K9	3	1GE	Standalone	ISR 4000	Versatile WAN solutions
Cisco C9300-48T-A	48	1GE	Fixed	Catalyst 9300	Stackable

A9K-MPA-2X100GE Product Application Scenarios

● High-speed data centers
● Large-scale enterprise networks
● Service provider networks

Be the first to review “A9K-MPA-2X100GE, Cisco ASR 9000 Adapter, 2x100GE ports/Modular design/Hot swappable”

Reviews

There are no reviews yet.

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

A9K-MPA-2X100GE Specifications
Chassis compatibility	Compatible with the Cisco ASR 9922, 9912, 9910, 9906, 9904, 9010, and 9006 routers
Port density	In the 400G modular line card, up to 2 modular port adapters are supported per line card for up to: ● 40-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 4-port 100G interfaces In the 200G modular line card, two modular port adapters are supported per line card, except for the 2-port 100 Gigabit modular port adapter and the 20-port 10 Gigabit modular port adapter. The 2-port 100 Gigabit and 20-port 10 Gigabit modular adapters are supported only in bay 0 of the 200G modular line card. The achievable port density on this line card is as follows: ● 20-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 2-port 100G interfaces
Ethernet	● IEEE 802.3 compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops, oversubscription drops, Cyclic Redundancy Check (CRC) error drops, packet sizes, and unicast, multicast, and broadcast packets
Card density	Maximum number of line cards per system: ● Cisco ASR 9922: 20 ● Cisco ASR 9912: 10 ● Cisco ASR 9910: 8 ● Cisco ASR 9906: 4 ● Cisco ASR 9904: 2 ● Cisco ASR 9010: 8 ● Cisco ASR 9006: 4
Options	Each line card is available as either a service edge - optimized line card (enhanced QoS) or a packet transport - optimized line card (basic QoS)
Reliability and availability	Line card Online Insertion and Removal (OIR) support without system impact
Network Equipment Building Standards (NEBS)	Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal)	41 to 104°F (5 to 40°C)
Operating temperature (short-term)1	23 to 131°F (-5 to 55°C)
Operating humidity (nominal) relative humidity	10 to 85%
Storage temperature	-40 to 158°F (-40 to 70°C)
Storage relative humidity	5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards	Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity	Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety	Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety
