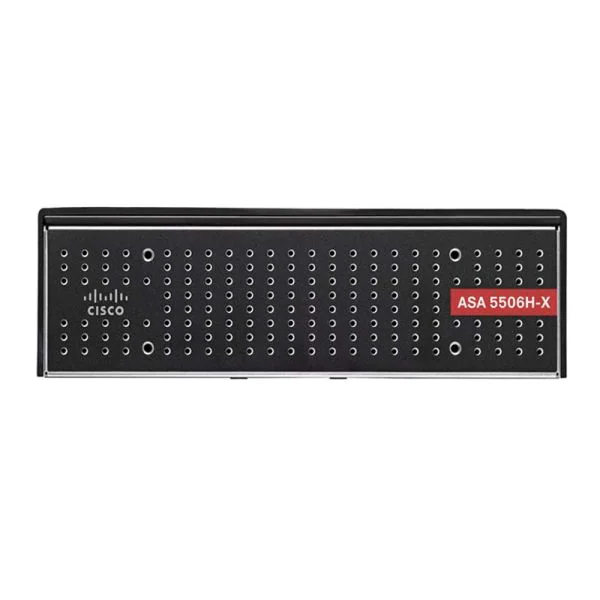

ASA5506H-FTD-K9 Overview

The ASA5506H-FTD-K9 is the ASA 5506H with Firepower Threat Defense. 4GE. AC.

Quick Spec

Table 1 shows the quick spec.

Product Number	ASA5506H-FTD-K9
Product Description	ASA 5506H with Firepower Threat Defense. 4GE. AC
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Stateful inspection throughput (maximum1)	750 Mbps
Stateful inspection throughput (multiprotocol2)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
Dimensions(H x W x D)	2.72 x 9.05 x 9.05 in.(6.9 x 23.0 x 23.0 cm)
Weight (with AC power supply)	7 lb (3.18 kg)

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

ASA5506H-FTD-K9 Specification
Product Number	ASA5506H-FTD-K9
Product Description	ASA 5506H with Firepower Threat Defense. 4GE. AC
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Maximum concurrent sessions	50000
Maximum New Connections per second	5,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5506H-X w/ FirePOWER Services
Stateful inspection throughput (maximum)	750 Mbps
Stateful inspection throughput (multiprotocol)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput	100 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	50
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections	50
Virtual interfaces (VLANs)	30
Security contexts(included; maximum)	N/A
High availability	Active/Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type ‘A’, High Speed 2.0
Integrated I/O	4 x 1 GE
Expansion I/O	N/A
Expansion I/O	N/A	Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	50 GB mSata tested for heat
Solid-state drive	50 GB mSata tested for heat	Memory	4 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	-4 to 140°F (-20 to 60 °C)
Relative humidity	95 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3050 m)
Acoustic noise	Fanless 0 dBA
Acoustic noise	Fanless 0 dBA	Temperature	-40 to 185ºF (-40 to 85ºC)
Relative humidity	10 to 95 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	N/A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
