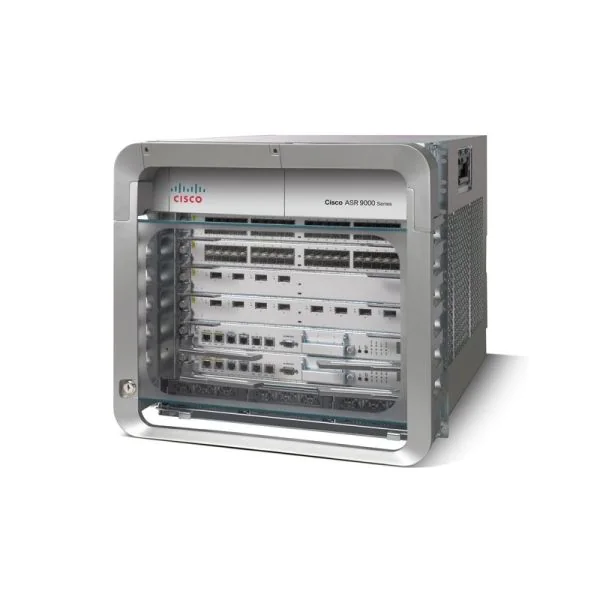

Cisco ASR-9006-AC Overview

ASR-9006-AC is the Cisco ASR-9006 AC Chassis. Cisco ASR 9006 Router in a 10-rack unit (RU) form factor allows for a full featured, highly reliable deployment in space-constrained environments. This product comes fully equipped with all the same software functionality and line card options as the ASR 9010, just in a smaller package. With dual route switch processors (RSP) along with full commons redundancy, system and network resiliency become a reality for slot-reduced deployments. To provide ASR 9006 functions, ASR-9006-AC needs to be configured with necessary components separately.

Be the first to review “ASR-9006-AC, Cisco ASR 9006 Router, 6 slots/Redundant AC power/No line card”

Reviews

There are no reviews yet.

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

Specification	Details
Model	ASR-9006-AC
Brand	Cisco
Height	17.50 in (444.5 mm) — 10 RU
Width	17.38 in (441.45 mm)
Depth	29.05 in (737.9 mm) with or without doors
Slot Orientation	Horizontal
RSP Configuration	Dual redundant Cisco ASR 9000 Series RSPs with integrated fabric (2 slots)
Line Card Slots	4 Cisco ASR 9000 Series line-card slots
Common Components	2 RSPs, 2 fan trays, 1 PEM (AC or DC), 1 fan filter
Reliability & Availability	Fabric, fan, feed, power-supply, RSP, and software redundancy
Rack Mounting	19-in default; 21-in & 23-in adapters available (min. 17.75-in opening required)
Cabinet Mounting	Supported (doors not recommended)
Wall Mounting	Not supported
Airflow	Right-to-back; Front-to-back with baffle
Fabric Architecture	One per RSP; active/active non-blocking; fully redundant; built-in service intelligence & traffic prioritization
Thermal Design	2 fan trays with 6 high-efficiency variable-speed fans each; no single point of failure
Modularity	Pay-as-you-grow power (AC & DC); multiple power module types
Power Modules	3 kW AC module; 2.1 kW DC module (AC & DC mixing not supported)
Redundancy	AC: N+N, DC: N+1; power module, A/B feed redundancy
Power Zones	No restrictions; fully load-sharing power infrastructure
Power Input	AC: 200–240V, 50–60 Hz, 16A max / DC: −40 to −72V, 50A nominal, 60A max
Power-Module Airflow	Front-to-back
Operating Temperature (Nominal)	41° to 104°F (5° to 40°C)
Operating Temperature (Short-Term)	ASR 9006: 23° to 131°F (−5° to 55°C)
Operating Humidity	5% to 90% (relative humidity)
Storage Temperature	−40° to 158°F (−40° to 70°C)
Storage Humidity	5% to 93%
Operating Altitude	−60 to 4000 m (up to 2000 m compliant with IEC/EN/UL/CSA 60950)
NEBS Compliance	SR-3580 Level 3, GR-1089-CORE, GR-63-CORE, Verizon TEEER
ETSI Compliance	EN300 386; ETSI 300 019 (Storage 1.1, Transport 2.3, Stationary 3.1)
EMC Emissions	FCC, ICES, CISPR, VCCI, BSMI Class A standards
