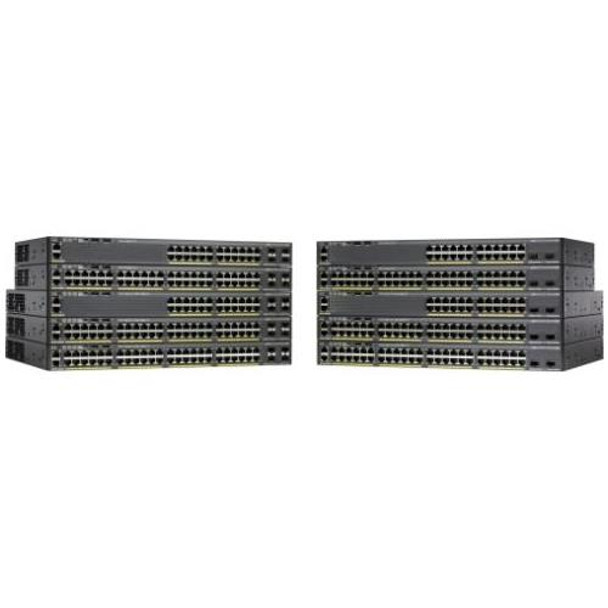

C2960X-48LPD-L Overview

Cisco catalyst 2960X-48LPD-L LAN Base Layer 2 stackable switch is comprised of 48 Ethernet 10/100/1000 ports with POE+ and 2 x 10G SFP+ uplink interfaces.

Quick Specs

Product Code	C2960X-48LPD-L
Enclosure Type	Rack-mountable – 1U
Feature Set	LAN Base
Uplink Interfaces	2 x 10G SFP+
Ports	48 x 10/100/1000
Available PoE Power	370W
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Performance	130.9Mpps
Switching Bandwidth	216Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	44.5 x cm x 36.8 cm x 4.5 cm
Package Weight	10.65 Kg

①Ethernet management port
②Mode button
③Switch LEDs
④USB mini-Type B (console) port
⑤USB Type A ports
⑥SFP module ports
⑦48 x 10/100/1000 ports
⑧CONSOLE LED
⑨MGMT LED
⑩RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port

Be the first to review “Cisco C2960X-48LPD-L Catalyst 2960X PoE Switch”

Reviews

There are no reviews yet.

Customer Reviews

(0)

5 stars

4 stars

3 stars

2 stars

1 stars

No reviews yet.

C2960X-48LPD-L Specification

C2960X-48LPD-L Specification
General
Device Type	Switch - 48 ports - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 2 x SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Switching capacity: 216 Gbps Forwarding performance (64-byte packet size): 130.9 Mpps
Capacity	Active VLANs: 1023
Jumbo Frame Support	9216 bytes
Max Units In A Stack	8
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus, DiffServ Code Point (DSCP) support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor	: 600 MHz
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Port transmission speed, port duplex mode, system, status, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
Interfaces	48 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE) 1 x console RJ-45 1 x mini-USB Type B management 1 x USB Type A 1 x 100Base-TX RJ-45 management 2 x SFP+ uplink
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Power
Power Device	Internal power supply
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	45.7 Watt
Features	Redundant Power System (RPS) connector
Miscellaneous
MTBF	277,960 hours
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 300386, RoHS 2011/65/EU
Software / System Requirements
Software Included	Cisco IOS LAN Base
Dimensions & Weight
Width	17.5 in
Depth	14.5 in
Height	1.8 in
Weight	12.79 lbs
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature	23 F
Max Operating Temperature	113 F
Humidity Range Operating	10 - 95% (non-condensing)
Min Storage Temperature	-13 F
Max Storage Temperature	158 F
Humidity Range Storage	10 - 95% (non-condensing)
