CR5P03BASD75 Overview

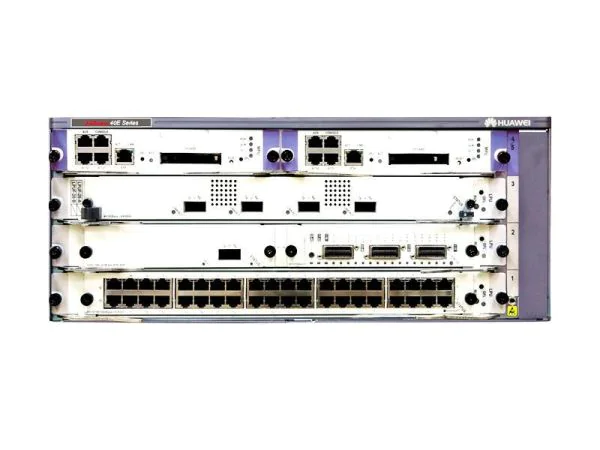

The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device. NE40E-X3A Basic Configuration CR5P03BASD75 (Including NE40E-X3A Chassis,2 MPUs,2 DC Power,without Software Charge and Document).
Quick Specs
| Product Code | Huawei Router – CR5P03BASD75 |
| Switching Capacity | 1.08 Tbit/s |
| Forwarding Performance | 540 Mpps |
| MPU Slots | 2 |
| SFU Slots | none |
| LPU Slots | 3 |
| Service Card Slots | Maximum 12 |
| Weight | 42 kg (DC) |
| Dimensions (W x D x H) | 175 mm x 442 mm x 650 mm (DC 4U) |
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router – CR5P03BASD75.
| Model | Description |
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
| eSFP-FE-LX-SM1310 | eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | eSFP,FE,Single-mode Module(1310nm,40km,LC) |
| GE-SFP Optical Transceiver | |
| SFP-1000BaseT | SFP,GE,Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | eSFP,GE,Single-mode Module(1550nm,40km,LC) |
