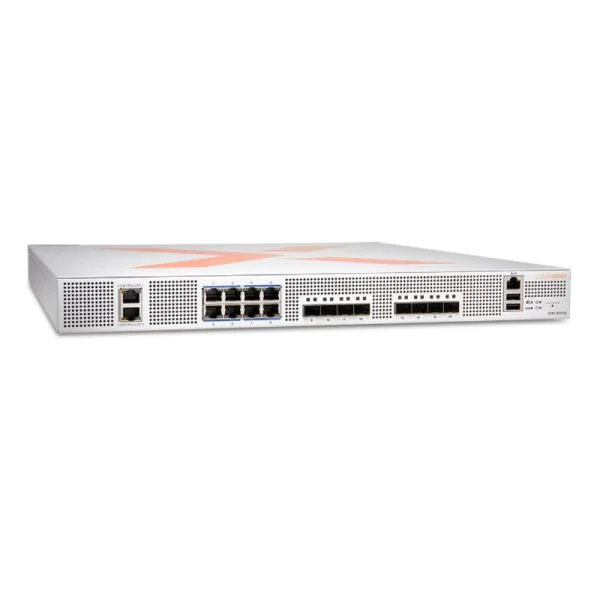

ION 9000 Overview
The Prisma SD-WAN Instant-On Network (ION) models of hardware and software devices enable the integration of a diverse set of wide area network (WAN) connection types, improve application performance and visibility, enhance security and compliance, and reduce the overall cost and complexity of your WAN. Built with the intent to reduce remote infrastructure, Prisma SD-WAN enables the cloud-delivered branch.
Enterprises have traditionally deployed multiprotocol label switching (MPLS) networks, using hardware routers, to connect branch offices to centralized data centers. With cloud adoption on the rise, end user applications like videoconferencing and office productivity solutions are increasingly delivered as cloud services. Legacy WAN architectures have debilitating limitations when organizations attempt to migrate to the cloud or utilize commodity internet connections in their branch offices.
Quick Specs
Table 1 shows the Quick Specs.
| Part number | PAN-CG-ION-9000 |
| Description | ION 9000 Hardware Appliance |
| Use case | Multi-gigabit remote office data center and large campus |
| Controller ports | 10/100/1000 RJ45 (2) |
| WAN/LAN/ internet ports | 10 GE SFP+ (8) 10/100/1000 RJ45 (8) |
| Bypass pairs | 4 pairsports 1/2, 3/4,5/6,7/8 |
| Throughput | Up to 10 Gbps |
| Power and mechanical | 1+1 Hot swappable redundant PSU 450 W (AC) 100-240 V 50-60 Hz Hot swappable fans (4) |
Product Details
Features
1.Deep SD-WAN analysis: Prisma SD-WAN provides unparalleled, actionable insights into the health and performance of your WAN application and links to help with network planning, problem resolution, and analytics. With instant visibility into application performance, you can better understand your network health and usage to determine more effective policy decisions on your network.
-Network DVR license: With this optional license, you can retain and access up to 90 days of statistics, policy, configuration, alarms, and alerts. Network DVR is licensed per ION device.
-WAN reporting license: With this optional license, you have access to auto-generated and downloadable reports giving network operators insight across various dimensions of their entire Prisma SD-WAN fabric; for example, utilization trends and hotspots to help customers determine if you need to do circuit upgrades or simply adjust your policies.
2.Zone-based firewall license: Prisma SD-WAN ION devices include an application-based, zone-based firewall (ZBFW) configured using the same top-down, applicationcentric policies used for performance and path selection, ensuring compliance across different network circuits and interfaces. Our ZBFW is a lightweight security solution used for securing the WAN perimeter and segmenting traffic within a branch site. Further, ION devices can be configured to use on-premises security devices or external, hosted security services to provide further security for remote offices.
3.Prisma SD-WAN CloudBlades: The CloudBlades platform enables API-based integration of the branch CPE and provides a centralized platform for programming as well as an app-flow engine at the CPE, access to Prisma SD-WAN telemetry, and secure authenticated API access to Prisma SD-WAN CPE and systems. As a result, businesses can easily enable the cloud-delivered branch and simplify management and operations.
