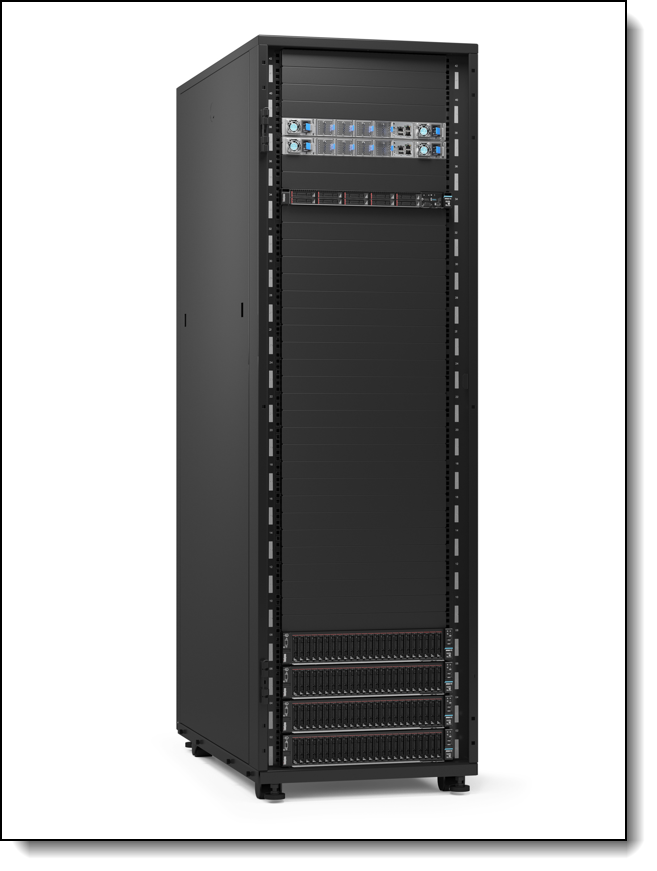

Lenovo ThinkAgile SXM4600
Roll over image to zoom in
Click to open expanded view

Lenovo ThinkAgile SXM4600

Call for Price

Call For Price

Availability: In stock

Get A Quote
Category:

Warranty : Warranty Icon

Shipping : Shipping Icon Fast & Secure

Payments : Payment Methods

Certification : Certifications

Introduction

Lenovo ThinkAgile SXM delivers a pre-integrated, easy-to-deploy rack-level solution for hybrid cloud to dramatically reduce time-to-value and total cost of ownership (TCO). The solution is based on Lenovo’s industry-leading data center infrastructure and Microsoft Azure Stack Hub, an extension of Microsoft Azure Services to on-premises environments.

Suggested workloads for the ThinkAgile SXM include virtual desktop infrastructure (VDI), back-office applications, server consolidation, enterprise applications, databases, test and development environments, and hybrid and private cloud implementation. Starting with as few as four nodes to keep your acquisition costs down, the solution offers “pay as you grow” scalability as your needs grow.



Be the first to review “Lenovo ThinkAgile SXM4600”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.

Customer Reviews

(0)
5 stars
4 stars
3 stars
2 stars
1 stars

No reviews yet.

×

Write a Review

☆ ☆ ☆ ☆ ☆

System specifications


ThinkAgile SXM 4600 Attribute SXM4600 42U or Customer-provided rack cabinet*
Form factor 42U Rack cabinet (7D6DBHC3)
Dimensions Height: 2011 mm Width: 600 mm Depth: 1200 mm
Total rack load capacity 953 kg
Maximum rack weight 1588 kg
AC power distribution 4x C19/C13 PDUs:
  • 3-Ph, 80A/200-240V C13/C19 PDU
  • 3-Ph, 60A/200-240V C13/C19 PDU
  • 3-Ph, 48A/200-240V C13/C19 PDU
  • 3-Ph, 48A/346-415V C13/C19 PDU
  • 3-Ph, 32A/200-240V C13/C19 PDU
All PDUs in a rack cabinet should be of the same type. IEC 320-C13 to C14 AC power cables for connecting all the equipment in a rack cabinet to PDUs are included.
Hardware warranty Three-, four, or five-year customer-replaceable unit and onsite limited warranty with ThinkAgile Advantage Support and selectable service levels: 9x5 next business day (NBD) parts delivered or onsite response, 24x7x4 or 24x7x2 onsite response or 6-hour or 24-hour committed repair (select countries). Also available are 1-year and 2-year post-warranty extensions, YourDrive YourData, and Premier Support.
Software Microsoft Windows Server 2019 with Hyper-V, Microsoft Storage Spaces Direct, Microsoft Azure Stack Hub, Lenovo XClarity Administrator Pro
Management node
Base model Lenovo SXM630 V3 (7D73CTOAWW)
Quantity 1
Processor Two Intel Xeon Gold processors
Memory 128 GB (8x 16GB TruDDR5 RDIMMs). ECC, patrol scrubbing, and demand scrubbing memory protection
Drive bays 8x 2.5-inch SAS/SATA hot-swap
Internal storage 2x ThinkSystem 2.5" PM1655 800GB Mixed Use SAS 24Gb HS SSDs (RAID-1 boot volume)
Storage controller ThinkSystem RAID 540-8i PCIe Adapter (12 Gbps SAS)
Network interfaces Management network:
  • 1x 1 GbE dedicated XCC management port (RJ-45)
VM/storage network:
  • 1x ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port
  • Rear: 2x USB 3.0 ports and 1x VGA port
I/O expansion slots BLKF    V3 1U x16/x16 BF PCIe Gen4 Riser1 BLKG - V3 1U x16 PCIe Gen4 Riser2 Three slots:
  • Slot 1: x16; low profile (for the network adapter)
  • Slot 2:  x16; low profile
  • Slot 3: x16 (for the RAID adapter)
Management features Lenovo XClarity Controller 2 (XCC2) Enterprise, proactive platform alerts, light path diagnostics, Lenovo XClarity Administrator with Pro license
Security features Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel
Cooling Seven hot-swap system fans with N+1 redundancy
Power supplies Two redundant hot-swap 750 W High Efficiency Platinum or Titanium AC power supplies
Hyperconverged nodes - Hybrid storage
Base model ThinkAgile SXM650 V3 Hybrid (7D76CTOAWW)
Expansion model ThinkAgile SXM650 V3 Hybrid - Expansion (7D76CTOBWW)
Quantity 4 - 16
Processor Two Intel Xeon Gold, or Platinum Gen 4 processors
Memory 32 DIMM slots for TruDDR5 RDIMMs (16 DIMMs per processor; 8 memory channels per processor with two DIMMs per channel) with support for the following RDIMM capacities:
  • 128 GB, 256GB Performance+ 4800 MHz
  • 32 GB and 64 GB 4800 MHz
Memory capacity Up to 8 TB
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring
Drive bays 16x 3.5-inch hot-swap: 12x SAS/SATA + 4x NVMe PCIe
Internal storage
  • Boot volume:
    • 2x ThinkSystem M.2 5400 PRO 960GB Read Intensive SATA 6Gb NHS SSD in a RAID-1 drive group
  • Storage Spaces Direct Cache Tier
    • 4x NVMe PCIe 4.0 x4 HS SSD
  • Storage Spaces Direct Capacity Tier
    • 12x 3.5" 7.2K SAS 12Gb Hot Swap 512n HDD
Storage controllers
  • ThinkSystem M.2 Kit with Mirroring Enablement Kit (for boot volume)
Depending on the number and type of storage devices selected, the following are available:
  • ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb HBA
  • Onboard NVMe interface (for the NVMe PCIe SSDs)
Network interfaces Management:
  • 1x 1 GbE dedicated XCC2 management port (RJ-45)
Workload:
  • 1x ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter;
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port
  • Rear: 2x USB 3.0 ports and 1x VGA port
I/O expansion slots 2x BLKP - V3 2U x16 PCIe Gen4 Riser1 or 2 Four slots:
  • Slot 4: PCIe 5.0 x16; low profile (for a network adapter)
  • Slot 5: PCIe 5.0 x16; full-height, half-length
  • Slot 6: PCIe 5.0 x16; full-height, half-length (for a network adapter)
  • Slot 7: PCIe 5.0 x8 (for an HBA)
Management features Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display.  XClarity Controller 2 (XCC2) embedded management controller, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions.
Security features Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel
Cooling Six hot-swap system fans with N+1 redundancy
Power supplies Two redundant hot-swap 1800 W High Efficiency Platinum or Titanium AC power supplies
Hyperconverged nodes - All Flash storage
Base model ThinkAgile SXM650 V3 All Flash (7D76CTOCWW)
Expansion model ThinkAgile SXM650 V3 All Flash - Expansion (7D76CTODWW)
Quantity 4 - 16
Processor Two Intel Xeon Gold, or Platinum Gen 4 processors
Memory 32 DIMM slots for TruDDR5 RDIMMs (16 DIMMs per processor; 8 memory channels per processor with two DIMMs per channel) with support for the following RDIMM capacities:
  • 128 GB, 256GB Performance+ 4800 MHz
  • 32 GB and 64 GB 4800 MHz
Memory capacity Up to 8 TB
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring
Drive bays 24x 2.5-inch hot-swap: 20x SAS/SATA + 4x NVMe PCIe 24x 2.5-inch hot-swap: 24x NVMe PCIe
Internal storage
  • Boot volume:
    • 2x ThinkSystem M.2 5400 PRO 960GB Read Intensive SATA 6Gb NHS SSDs in a RAID-1 drive group
  • Storage Spaces Direct Cache Tier, choice of the following:
    • None; or
    • 4x ThinkSystem 2.5" U.2 NVMe PCIe 4.0 x4 HS SSD
  • Storage Spaces Direct Capacity Tier, choice of 12, 16, or 20 of the following:
    • ThinkSystem 2.5" SATA 6Gb HS SSD or
    • ThinkSystem 2.5" SAS 24Gb HS SSD or
    • ThinkSystem 2.5" U.2 NVMe PCIe 4.0 x4 HS SSD
    • ThinkSystem 2.5" U.3 NVMe PCIe 4.0 x4 HS SSD
Storage controller
  • ThinkSystem M.2 Kit with Mirroring Enablement Kit (for boot volume)
  • ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb HBA
  • ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA
  • Onboard NVMe interface (for the NVMe PCIe SSDs)
  • All-NVMe config requires 1x 4-port Retimer (B98C) when configured with 24x NVMe drives
Network interfaces Management:
  • 1x 1 GbE dedicated XCC2 management port (RJ-45)
Workload:
  • 1x ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port
  • Rear: 2x USB 3.0 ports and 1x VGA port
I/O expansion slots Up to six slots:
  • Slot 1: PCIe 5.0 x16; full-height, half-length (for a network adapter)
  • Slot 2: PCIe 5.0 x8; full-height, half-length (not used)
  • Slot 3: PCIe 5.0 x8; low profile (for a network adapter)
  • Slot 4: PCIe 5.0 x16; full-height, half-length (not used)
  • Slot 5: PCIe 5.0 x8; full-height, half-length (for a network adapter)
  • Slot 5: PCIe 5.0 x8 (for an HBA)
