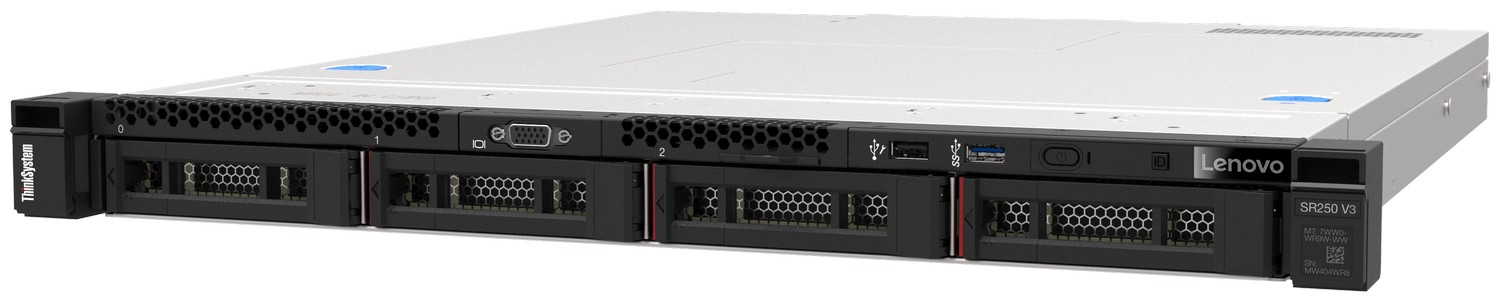

Lenovo ThinkSystem SR250 V3 Server

Call for Price

Call For Price

Availability: In stock

Get A Quote
Category:

Warranty : Warranty Icon

Shipping : Shipping Icon Fast & Secure

Payments : Payment Methods

Certification : Certifications

Key features

The SR250 V3 server is a compact, cost-effective, single-processor 1U rack server that has been optimized to provide enterprise-class features to small-to-medium-sized businesses, retail stores, or distributed enterprises.

Scalability and performance

The SR250 V3 offers the following features to boost performance, improve scalability, and reduce costs:

  • Improved single-socket processor performance:
    • Intel Xeon E-2400 Series processors (“Raptor Lake”) up to to 8 cores and core speeds up to 3.5 GHz
    • Intel Pentium G7400 and G7400T processors (“Alder Lake”) with 2 cores and core speeds up to 3.7 GHz
  • Up to four 4800 MHz DDR5 ECC UDIMMs provide speed and capacity of up to 128 GB
  • Offers flexible and scalable internal storage in a 1U rack form factor with up to 4x 3.5-inch drives for capacity-optimized configurations
  • Up to three PCIe slots for I/O expansion, riser dependent, one of which has the new PCIe Gen5 interface to maximize I/O performance
  • The use of solid-state drives (SSDs) instead of, or along with, traditional hard disk drives (HDDs) can significantly improve I/O performance. An SSD can support up to 100 times more I/O operations per second (IOPS) than a typical HDD.
  • New high-speed RAID controllers from Lenovo and Broadcom provide 12 Gb SAS connectivity to the drive backplanes
  • Supports two M.2 drives for OS boot support with VROC RAID or hardware RAID redundancy
  • The server has two integrated Gigabit Ethernet ports
  • Support for a NVIDIA GPU for enhanced workload performance
Be the first to review “Lenovo ThinkSystem SR250 V3 Server”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.

Customer Reviews

(0)
5 stars
4 stars
3 stars
2 stars
1 stars

No reviews yet.

×

Write a Review

☆ ☆ ☆ ☆ ☆

Components Specification
Machine type 7DCM - 1 year warranty 7DCL - 3 year warranty
Form factor 1U rack-mount
Processor One Intel processor. Choose from:
  • Intel Xeon 6300 Series processors up to to 8 cores, with core speeds up to 3.6 GHz
  • Intel Xeon E-2400 Series processors ("Raptor Lake-E") up to to 8 cores, with core speeds up to 3.5 GHz
  • Intel Pentium G7400 and G7400T processors ("Alder Lake-R") with 2 cores and core speeds up to 3.7 GHz
Chipset Intel Raptor Lake PCH-S C266
Memory Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs.
Memory maximum Up to 128 GB using 4x 32 GB UDIMMs.
Memory protection Error-correcting code (ECC)
Disk drive bays Available configurations:
  • 8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
  • 4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays
  • 4x 3.5-inch simple-swap drive bays, all SATA
  • 4x 3.5-inch simple-swap drive bays, 2x SATA and 2x NVMe
In addition, the SR250 V3 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot.
Maximum internal storage
  • 2.5-inch drives:
    • 19.2TB using 8 x 2.4TB 10K 2.5-inch SAS HDDs
  • 3.5-inch drives:
    • 96TB using 4x 24TB 3.5-inch SAS HDDs
    • 96TB using 4x 24TB 3.5-inch SATA HDDs
    • 15.36TB using 4x 3.84TB 3.5-inch SATA SSDs
  • Intermix of SAS and SATA is supported.
Storage controller
  • Software RAID (RAID level 0, 1, 5, and 10): Intel VROC SATA RAID
  • 12 Gb SAS/SATA RAID adapters
  • 12 Gb SAS/SATA host bus adapters
  • CFF RAID adapters
Optical drive bays No support. Use an external optical drive.
Tape drive bays No support
Network interfaces Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.
PCI Expansion slots Two PCIe slots depending on the riser selected:
  • Riser with two x8 slots:
    • Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W, half-length, low-profile
    • Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 50W, half-length, low-profile
    • Slimline x8 connector (internal): PCIe G3 x4 (x8 slot, closed-ended) 25W, half-length, low-profile
  • Riser with one x16 slot:
    • Slot 1: Not connected
    • Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W, half-length, half-height to support PCIe x16 card, such as GPU
    • Slimline x8 connector (internal): PCIe G3 x4 (x8 slot, closed-ended) 25W, half-length, low-profile
Note: Slimline x8 connector to support onboard NVMe (PCIe 4.0) or CFF RAID card
Ports
  • Front:
    • One USB 3.2 G1 (5 Gb/s) port
    • One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
    • Optional VGA port
  • Rear:
    • Two USB 3.2 G1 (5 Gb/s) ports
    • One VGA video
    • One RJ-45 systems management network port
    • Two RJ-45 GbE network ports
    • One serial port
Cooling Four non-hot-swap system fans
Power supply Model dependent choices:
  • Two hot-swap 800W redundant power supplies, 80 PLUS Platinum or Titanium certified, Energy Star and ErP Lot 9 compliant (Energy Star and ErP Lot 9 only with Intel Xeon processors)
Hot-swap parts Hard drives and hot-swap power supplies
Systems management Operator panel with status LEDs. XClarity Controller 2 (XCC2) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC2 platinum to enable premium functions.
Security features Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security.
Video G200 graphics with 16 MB memory, integrated into the XCC2. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz.
