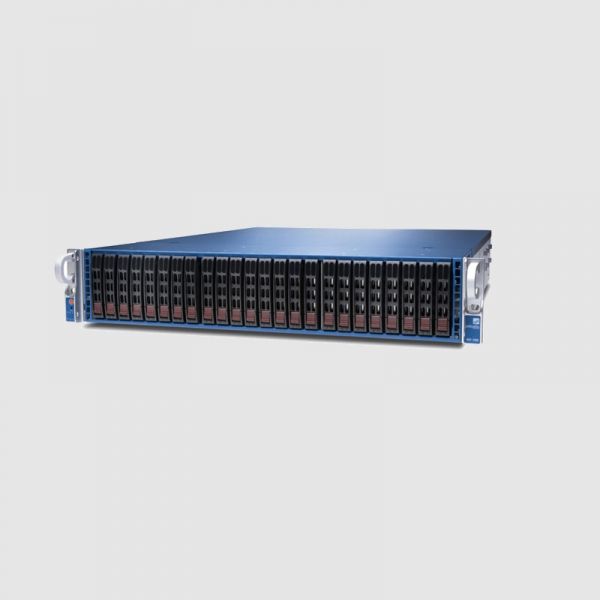

M-600 Overview
The Palo Alto Networks
M-200 and M-600 appliances are multi-function appliances that you can configure to function in Panorama Management mode, Panorama Management-only mode, Panorama Log Collector mode, or PAN-DB Private Cloud mode (M-600 only).
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | PAN-M-600 |
| Description | Palo Alto Networks
M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails |
| Power Supplies | Two 750W AC power supplies; the second power supply is for redundancy. |
| Input voltage and frequency | 100-240VAC (50-60Hz) |
| Power consumption | 486W |
| Maximum current consumption | 4.5A@240VAC |
| Maximum inrush current (per power supply) | 35A |
