QSFP-100G-AOC7M

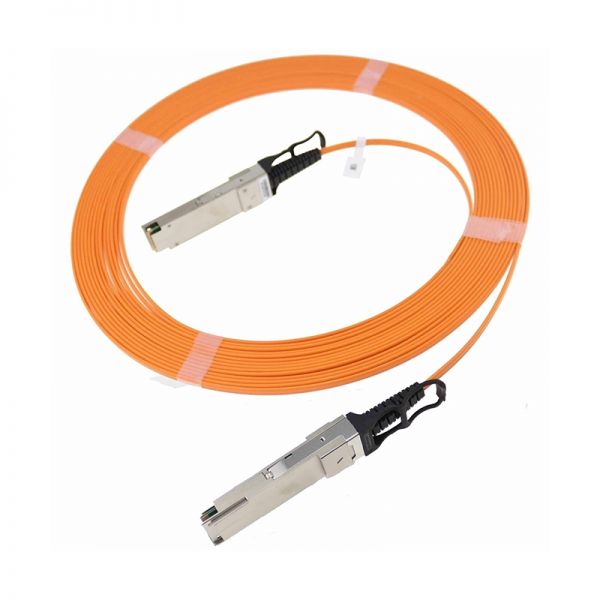

Description Cisco 100GBase QSFP Active Optical Cable, 7-meter Dimensions 13.5 x 18.4 x 72.4 mm

 QSFP Port cabling specifications

Nominal Wavelength (nm) \ Cable Type Active optical cable assembly Core Size (Microns) \ Modal Bandwidth (MHz*km)*¹ \ Cable Distance 7m Power Consumption (W) 3.5 Pull Tab Color Blue *¹ Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm

Environmental Conditions and Power Requirements

Commercial temperature 0 to 70°C (32 to 158°F) Storage temperature -40 to 85°C (-40 to 185°F)

Regulatory and Standards compliance

Standards •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 •SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 Safety •Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV compliant
