ET1Z04EACC00 Overview
ET1Z04EACC00 is the S12704 Enhanced Engine AC Bundle(Including Assembly Chassis*1,MPUA Main Board*1,SFUC Switch Fabric Unit*2,800W AC Power*2,Basic Software*1)
Quick Specs
| Product Code | ET1Z04EACC00 |
| Packet Forwarding Rates | 3,120 Mpps; 4,560 Mpps |
| Switching Capacity | 4.88 Tbit/s; 16.08 Tbit/s |
| MPU Slots | 2 |
| SFU Slots | 2 |
| Service Card Slots | 4 |
| Energy Saving | Energy Efficient Ethernet (802.3az) |
| Redundancy Design | MPUs, SFUs, power supplies, and fan modules |
| Maximum Power Consumption of the Entire Equipment | ≤ 2,200W |
| Installation | The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis. |
| Dimensions (W x D x H) | With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U))
Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U)) |
| Weight | 60 kg (132.3 lb) |
Product Details

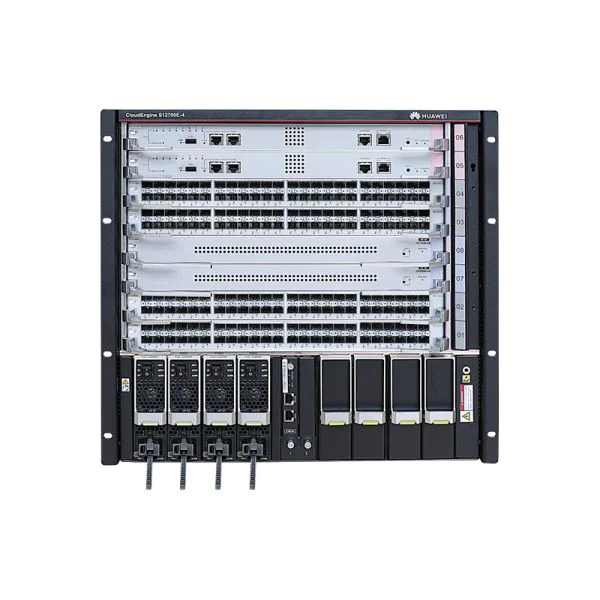

| ① | Two MPUs |
| ② | Four service cards, including:
·Open Service Platform Unit |
| ③ | Two SFUs |
| ④ | A pair of mounting brackets |
| ⑤ | Four power modules |
| ⑥ | Two CMUs |
| ⑦ | Front ESD jack |
| ⑧ | Cable management frames |
·The mounting brackets are used to secure the chassis in a cabinet.
·The ground terminal of an ESD wrist strap can be inserted in the Front ESD jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.
The Modules, Cards
Table 2 shows the recommended elements for the ET1Z04EACC00.
| Model | Description |
| FE-SFP optical transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| GE-SFP optical transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ optical transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| 40GE CFP optical transceiver | |
| CFP-40G-SR4 | High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO) |
| CFP-40G-LR4 | High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC) |
| CFP-40G-ER4 | High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC) |
| 40GE QSFP+ optical transceiver | |
| QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-ER4 | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
| 100GE CFP optical transceiver | |
| CFP-100G-SR10
|
High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO) |
| CFP-100G-LR4 | CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC) |
| CFP-100G-ER4
|
High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC) |
| GE copper transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| 100GE interface card | |
| ET1D2C02FEE0 | 2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series) |
| 10GE interface card | |
| ET1D2X32SSC0 | 32-Port 10GBASE-X Interface Card(SC,SFP+) |
| ET1D2X12SSA0 | 12-Port 10GBASE-X Interface Card(SA,SFP+) |
| 40GE interface card | |
| ET1D2L08QSC0
|
8-Port 40GBASE-X Interface Card(SC,QSFP+) |
| ET1D2L02QSC0 | 2-Port 40GBASE-X Interface Card(SC,QSFP+) |
| Centralized monitoring unit | |
| EH1D200CMU00 | Centralized Monitoring Board |
| Cluster switching system unit | |
| EH1D2VS08000 | 8-Port 10G Cluster Switching System Service Unit (SFP+) |
| Firewall module | |
| ET1D2FW00S02 | NGFW Module C,with HW General Security Platform Software |
| ET1D2FW00S01 | NGFW Module B,with HW General Security Platform Software |
| GE/10GE interface card | |
| ET1D2S08SX1E | 8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
| ET1D2S04SX1E | 4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
| Intrusion prevention system module | |
| ET1D2IPS0S00 | IPS Module A,with HW General Security Platform Software |
| Main processing unit | |
| ET1D2MPUA000 | S12708/S12712,Main Processing Unit A(Optional clock) |
| Switch fabric unit | |
| ET1D2SFUD000 | S12708/S12712,Switch Fabric Unit D |
| ET1D2SFUA000 | S12708/S12712,Switch Fabric Unit A |
| Wireless access controller unit | |
| ACU2 | WLAN ACU2 Access Controller Unit(128 AP Control Resource Included) |
| GE interface card | |
| ET1D2T36SEA0 | 36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP) |
| ET1D2G48SX1E | 48-Port 100/1000BASE-X Interface Card(X1E,SFP) |
